The Type00 Pneumatic and ElectroPneumatic Valve Positioners are designed to provide stable and accurate control of rotary and linear valves These force balanced devices are operated with cam characterized air pressure control utilizing a low friction spool valve to accurately drive rotary and linear pneumatic actuators.

Control valve positioner. A valve positioner is a device that interfaces with the process controller and the actuator, and is connected to the valve stem so it can sense the exact position of the valve The positioner receives an input signal from the process controller and outputs a signal to the actuator to move the valve. Its SP is the controller (ours) output, and its manipulated variable is the air pressure within the controller. The Positioner is a forcebalance instrument that provides a control valve position proportional to a pneumatic input signal The balance of opposing forces in the positioner occurs at the summing beam One force applied to the summing beam is developed from the input signal pressure on the diaphragm The other force is from the feedback spring.

Sizing, operations playlist This series of 15 short videos, "Control valve basics" by Fisher Valves & Instruments, covers sizing valves for compressible fluids and liquid flows, pressure drops, bench set adjustment, and components of ball, butterfly, globe and plug valveEmerson Automation Solutions Chemical side coverage This feature article, "Get smart about control valve positioners" by. Details about SCHUBERT & SALZER TYPE 8021 SLIDING GATE CONTROL VALVE W/ INTEGRATED POSITIONER SCHUBERT & SALZER TYPE 8021 SLIDING GATE CONTROL VALVE W/ INTEGRATED POSITIONER Item Information Condition New – Open box Price US $1, $73 for 24 months with PayPal Creditopens a installment calculator layer* $73 for 24 months Minimum. Valve positioners are utilized to have greater control over a process Specific set points are indicated, and a signal is sent to the positioner by the operator, specifying exactly how much flow should be passed through the valve But sometimes valve positioners have a difficult time finding where they’re supposed to be.

A valve positioner is a device mounted on the actuator that exerts or reduces air pressure as necessary to make sure the valve achieves the correct position When there is no positioner, the control signal goes directly to the actuator When a positioner is installed, it intercepts this signal and then outputs a different signal to the actuator. Control Valve Positioners A positioner is a motioncontrol device designed to actively compare stem position against the control signal, adjusting pressure to the actuator diaphragm or piston until the correct stem position is reached. Control valve positioners are typically constructed in such a way to source and vent high air flow rates, such that the positioner also fulfills the functionality of a volume booster (Note 3) Thus, a positioner not only ensures more precise valve stem positioning, but also faster stem velocity (and shorter time delays) than if the valve actuator were directly “powered” by an I/P transducer.

The worldwide society of automation specifies the control valve as a poweroperated gadget that runs a fluid circulation rate in a procedure control system Control Valve Addon The following list reveals the most typically utilized devices with the control valve, based on the requirements Pneumatic Positioners;. Unfortunately, DVC and DVP tend to restrict a person’s thinking to valves IP (intelligent positioner) makes sense as a term, but is likely confused with I/P (current to pneumatic transducers). A complete range of control valve positioners including pneumatic, electropneumatic & digital positoners from PMV and OMC Valve Positioners Digital Low Cost Digital Positioner PMV D is a low cost, simple and easy to use digital positioner that auto calibrate itself on the push of a button High Performance Digital Positioner.

Valve positioners are utilized to have greater control over a process Specific set points are indicated, and a signal is sent to the positioner by the operator, specifying exactly how much flow should be passed through the valve But sometimes valve positioners have a difficult time finding where they’re supposed to be. The Valtek Beta Positioner is available with either a pneumatic (P/P) module for air control signals or an electropneumatic (I/P) module for milliampere electri cal control signals It is doubleacting, capable of sup plying air to either side of the actuator piston while exhausting the other side to the atmosphere. The Valtek Beta Positioner is available with either a pneumatic (P/P) module for air control signals or an electropneumatic (I/P) module for milliampere electri cal control signals It is doubleacting, capable of sup plying air to either side of the actuator piston while exhausting the other side to the atmosphere.

Control valve positioner is a device put into a valve to ensure that it is at a correct position of opening as per the control signal I/P converter only sends the opening/closing request to valve but can’t confirm its position. A valve positioner is a device that interfaces with the process controller and the actuator, and is connected to the valve stem so it can sense the exact position of the valve The positioner receives an input signal from the process controller and outputs a signal to the actuator to move the valve. A positioner for a control valve is used to adjust a valve’s position based on a desired set point for a process variable, whether it be pressure, temperature, or flow Types of valve positioners include pneumatic, electropneumatic, and digital In this post, we’ll look at the basics of valve positioners and an overview of these three types.

Valve Positioners Becker HPP Pneumatic Positioners Provide Accurate Positioning of Control Valves with Reduced Bleed Emissions The Becker HPP provides accurate positioning for both singleacting and doubleacting actuated control valves It can be configured in both reverse and directacting with a variety of instrument signal input ranges. Donjoy Technology Co, Ltd Applications ILTOPA1 mini digital valve positionerIt is a simplified version straightstroke pne. Within the positioner, there is a position sensor driven by a linkage attached to the stem of the control valve This mix of new and old technologies often results in lessthanprecise control, which over a period of time can negatively impact the process itself and the efficiency of the entire plant.

A positioner ensures that there is a linear relationship between the signal input pressure from the control system and the position of the control valve This means that for a given input signal, the valve will always attempt to maintain the same position regardless of changes in valve differential pressure, stem friction, diaphragm hysteresis and so on. Control valve positioners are typically constructed in such a way to source and vent high air flow rates, such that the positioner also fulfills the functionality of a volume booster850 Thus, a positioner not only ensures more precise valve stem positioning, but also faster stem velocity (and shorter time delays) than if the valve actuator were directly “powered” by an I/P transducer. A valve positioner is the interpreter between the control valve assembly and the control system It translates output signals from the control system and adjusts the air to the actuator, which moves the valve to the position requested by the control system (Figure 1).

Control valves contain three major components, the valve body, the positioner, and the valve actuator The valve body provides the fluid connections and movable restrictor comprised a valve stem and plug that is in contact with the fluid that varies the flow. Control Valve Positioner Assembly A valve positioner consists of a very high gain amplifier this may be pneumatic, electropneumatic etc, and a feed back link which detects the actual position of the valve The required movement is for the valve to close The input pressure from the controller to the bellows falls. The worldwide society of automation specifies the control valve as a poweroperated gadget that runs a fluid circulation rate in a procedure control system Control Valve Addon The following list reveals the most typically utilized devices with the control valve, based on the requirements Pneumatic Positioners;.

Valve positioners are devices used to put a valve in the correct position by increasing or decreasing the air load pressure on the actuator Instead of the process controller sending a signal directly to the actuator to move the valve, a valve positioner senses the exact position of the valve and communicates to the actuator to move the valve. Details about SCHUBERT & SALZER TYPE 8021 SLIDING GATE CONTROL VALVE W/ INTEGRATED POSITIONER SCHUBERT & SALZER TYPE 8021 SLIDING GATE CONTROL VALVE W/ INTEGRATED POSITIONER Item Information Condition New – Open box Price US $1, $73 for 24 months with PayPal Creditopens a installment calculator layer* $73 for 24 months Minimum. Learn about the basic functionality and overall benefits to using valve positioners.

Process Valves Temperature Control Equipment Static Neutralization Equipment Silencers ・Monitoring function ・Explosionproof construction ・Electropneumatic positioner TIIS explosionproof construction (Exd II BT5) ATEX intrinsically safe explosionproof construction (II 2G Ex ib II. Control valve positioner is a device put into a valve to ensure that it is at a correct position of opening as per the control signal I/P converter only sends the opening/closing request to valve but can’t confirm its position. The positioner This is a device to ensure the control valve executes exactly what it it is told to do This is a controller (usualy a PID) whose PV is the valve position;.

Positioner Overshoot One control valve problem that is more common now than a decade ago, is that of positioner overshoot Positioners are fast feedback controllers that measure the valve stem position and manipulate the valve actuator until the desired valve position is achieved Most positioners can be tuned. The worldwide society of automation specifies the control valve as a poweroperated gadget that runs a fluid circulation rate in a procedure control system Control Valve Addon The following list reveals the most typically utilized devices with the control valve, based on the requirements Pneumatic Positioners;. Connect the meter mA output to the input terminals of the valve positioner To determine if the positioner is fully closes the valve at 4 mA, adjust the source current to 40 mA using the push button The valve should be closed While watching the valve for any movement, press the Coarse Down button once to decrease the current to 39 mA.

The Positioner is a forcebalance instrument that provides a control valve position proportional to a pneumatic input signal The balance of opposing forces in the positioner occurs at the summing beam One force applied to the summing beam is developed from the input signal pressure on the diaphragm The other force is from the feedback spring. Control Valve Positioner Assembly A valve positioner consists of a very high gain amplifier this may be pneumatic, electropneumatic etc, and a feed back link which detects the actual position of the valve The required movement is for the valve to close The input pressure from the controller to the bellows falls The flapper moves away from the nozzle and the pressure after the orifice falls. The worldwide society of automation specifies the control valve as a poweroperated gadget that runs a fluid circulation rate in a procedure control system Control Valve Addon The following list reveals the most typically utilized devices with the control valve, based on the requirements Pneumatic Positioners;.

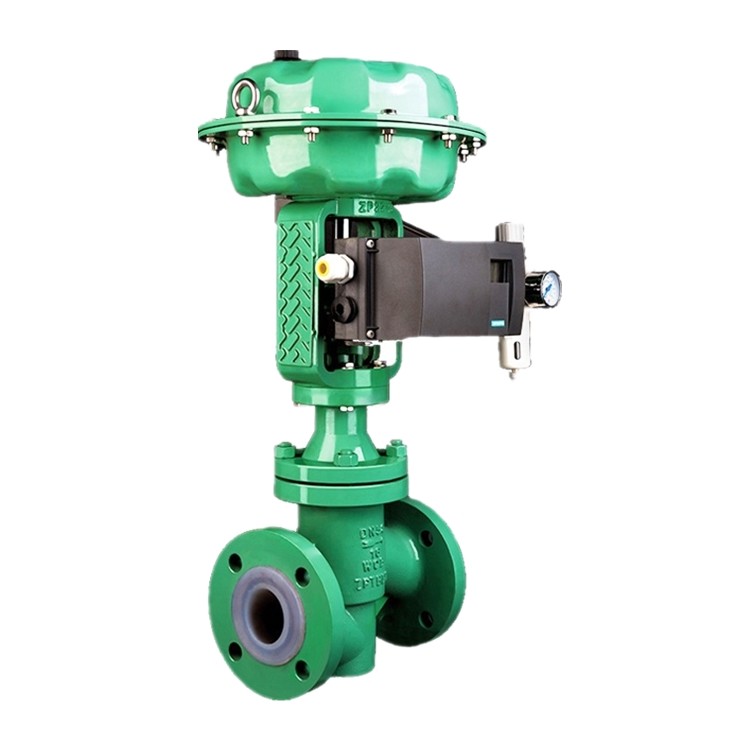

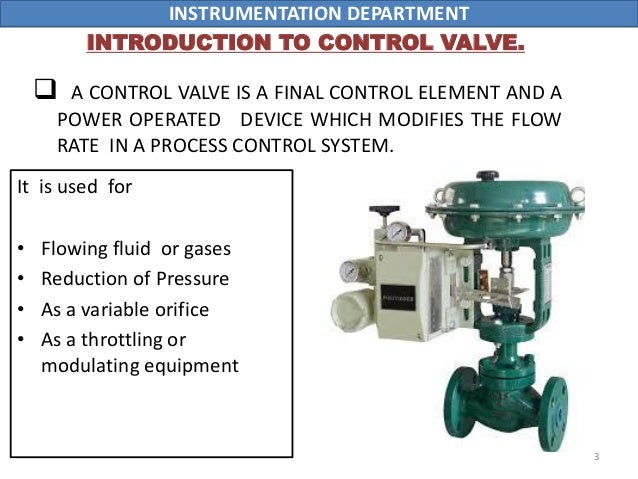

The operation of a control valve involves positioning its movable part (the plug, ball or vane) relative to the stationary seat of the valve The purpose of the valve actuator is to accurately locate the valve plug in a position dictated by the control signal. Donjoy Technology Co, Ltd Applications ILTOPA1 mini digital valve positionerIt is a simplified version straightstroke pne. Details about SCHUBERT & SALZER TYPE 8021 SLIDING GATE CONTROL VALVE W/ INTEGRATED POSITIONER SCHUBERT & SALZER TYPE 8021 SLIDING GATE CONTROL VALVE W/ INTEGRATED POSITIONER Item Information Condition New – Open box Price US $1, $73 for 24 months with PayPal Creditopens a installment calculator layer* $73 for 24 months Minimum.

Specifically, a typical control valve utilizing a spring diaphragm actuator and smart positioner takes a 4 mA signal or a digital positioning signal via Hart, Foundation Fieldbus, Profibus, or similar communication protocol to position the valve The electronic signal is converted inside the positioner into a pneumatic signal. The Positioner is a forcebalance instrument that provides a control valve position proportional to a pneumatic input signal The balance of opposing forces in the positioner occurs at the summing beam One force applied to the summing beam is developed from the input signal pressure on the diaphragm The other force is from the feedback spring. Every control valve application is different, and several factors go into determining whether or not a positioner will drive better performance from your control loop Here, we’ll dig into some of these factors to help you decide if you need a control valve positioner When positioners helpand when they don’t.

Positioners allow tighter control over the process variable by increasing the speed and accuracy of the actuator response Because a positioner’s job is to make sure the valve is in the right place, it also helps in overcoming factors that affect control valve performance, such as friction, as well as problems like nonlinearity and deadband. Positioner is a device put into a valve to ensure that it is at correct positionAn open/close operation of control valve also can be done with an I/P converter but the position of the valve can’t be confirmed calibration of control valve positioner is crucial calibration that should be done by extreme precision. Donjoy Technology Co, Ltd Applications ILTOPA1 mini digital valve positionerIt is a simplified version straightstroke pne.

The Positioner is a forcebalance instrument that provides a control valve position proportional to a pneumatic input signal The balance of opposing forces in the positioner occurs at the summing beam One force applied to the summing beam is developed from the input signal pressure on the diaphragm The other force is from the feedback spring. Sizing, operations playlist This series of 15 short videos, "Control valve basics" by Fisher Valves & Instruments, covers sizing valves for compressible fluids and liquid flows, pressure drops, bench set adjustment, and components of ball, butterfly, globe and plug valveEmerson Automation Solutions Chemical side coverage This feature article, "Get smart about control valve positioners" by. Sizing, operations playlist This series of 15 short videos, "Control valve basics" by Fisher Valves & Instruments, covers sizing valves for compressible fluids and liquid flows, pressure drops, bench set adjustment, and components of ball, butterfly, globe and plug valveEmerson Automation Solutions Chemical side coverage This feature article, "Get smart about control valve positioners" by.

Specifically, a typical control valve utilizing a spring diaphragm actuator and smart positioner takes a 4 mA signal or a digital positioning signal via Hart, Foundation Fieldbus, Profibus, or similar communication protocol to position the valve The electronic signal is converted inside the positioner into a pneumatic signal. A brief overview about how digital valve controllers, or smart positioners, function and can benefit your process Diagnostic Levels for Fisher FIELDVUE DVC60 Series Digital Valve Controllers Learn about the diagnostic level options for Fisher FIELDVUE DVC60 Series digital valve controllers. Hello Dosto, Is video me maine valve positioner working ke bare bataya hai or control valve k parts ko kholkar unke bare me bataya hai Ummid h aapko ye vide.

Control valve positioners are typically constructed in such a way to source and vent high air flow rates, such that the positioner also fulfills the functionality of a volume booster (Note 3) Thus, a positioner not only ensures more precise valve stem positioning, but also faster stem velocity (and shorter time delays) than if the valve. Donjoy Technology Co, Ltd Applications ILTOPA1 mini digital valve positionerIt is a simplified version straightstroke pne. An ElectroPneumatic Positioner works like this Your control device will send a 4mADC Control Signal to the Valve Positioner I/P Converter which will in turn convert to a linear 315 PSI Output to the Positioner The 4 indicates the milliamperage for the positioner, 4 milliamps indicates a closed valve, where indicates fully open.

As a common control valve accessory, the valve positioner delivers pressurized air to the valve actuator so that the position of the valve stem or shaft corresponds to the set point from the control system Valve positioners are typically pneumatic or analog I/P and are used when a valve requires throttling action. Details about SCHUBERT & SALZER TYPE 8021 SLIDING GATE CONTROL VALVE W/ INTEGRATED POSITIONER SCHUBERT & SALZER TYPE 8021 SLIDING GATE CONTROL VALVE W/ INTEGRATED POSITIONER Item Information Condition New – Open box Price US $1, $73 for 24 months with PayPal Creditopens a installment calculator layer* $73 for 24 months Minimum. Positioners are most commonly used to move a control valve to a specified position so that a process meets specific parameters (flow, pressure, temperature) Fisher® positioners have the reputation of providing the most accurate, robust, and reliable performance in the industry ElectroPneumatic Positioners.
